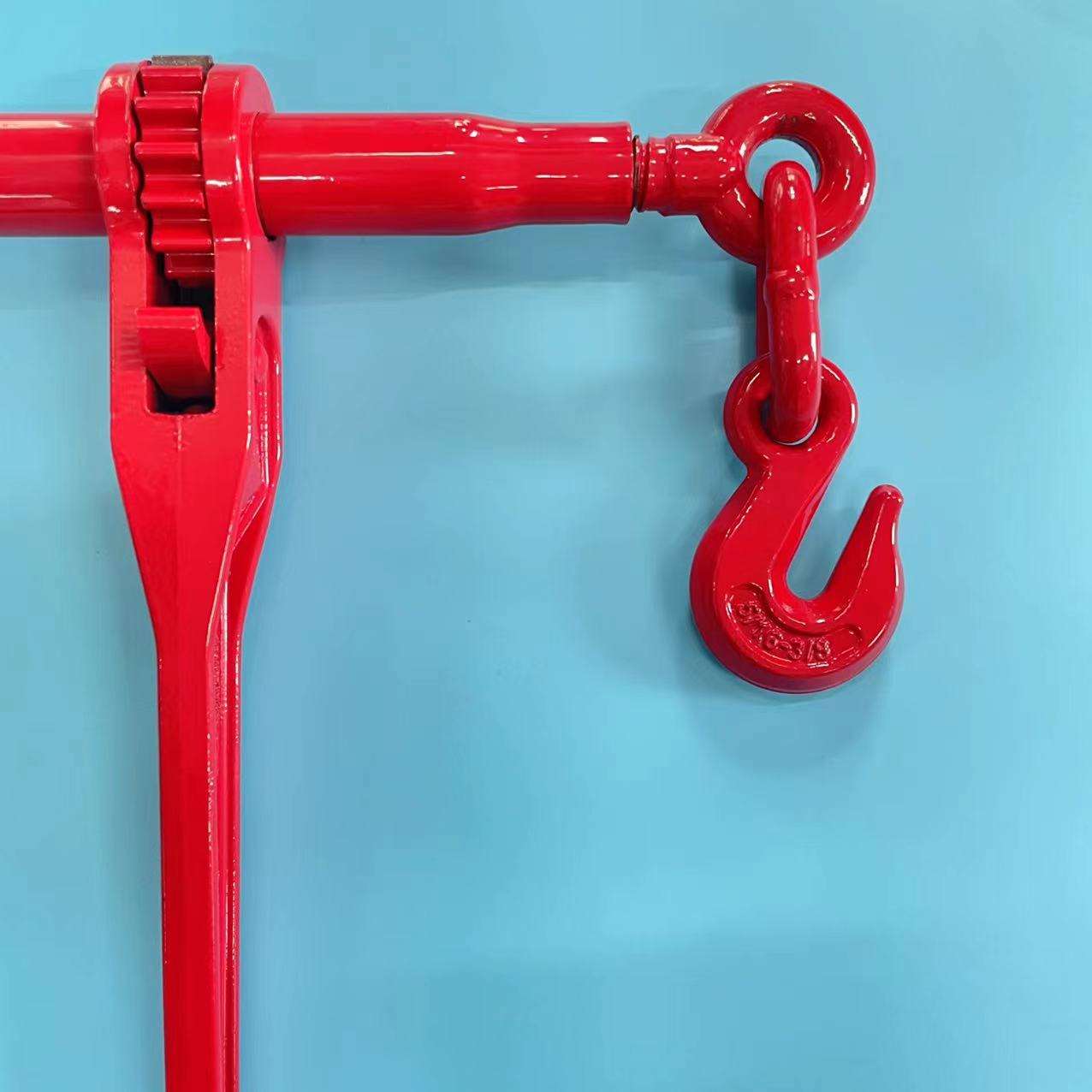

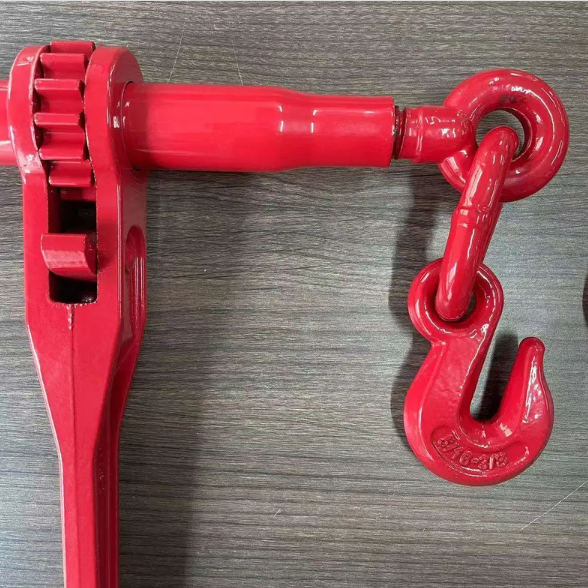

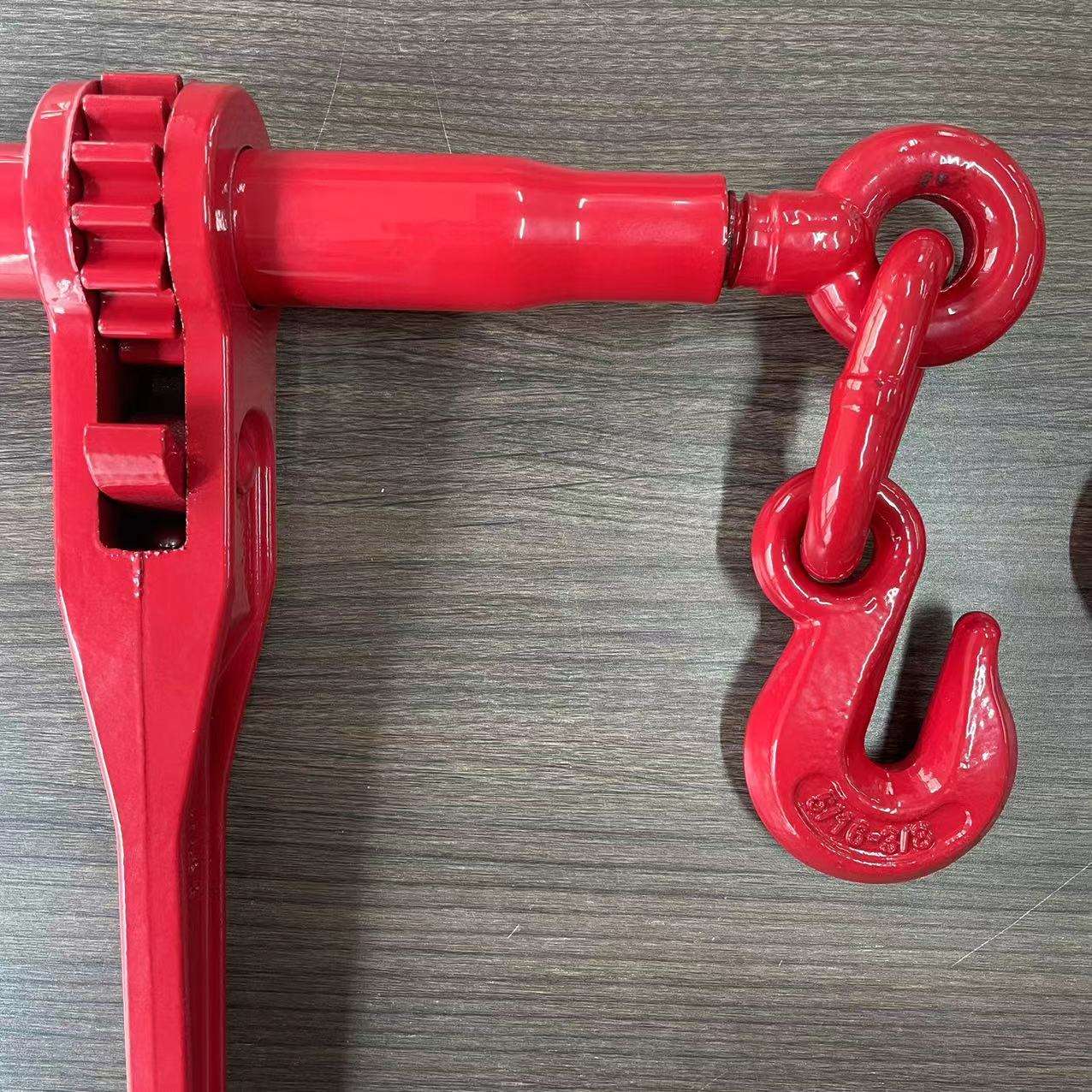

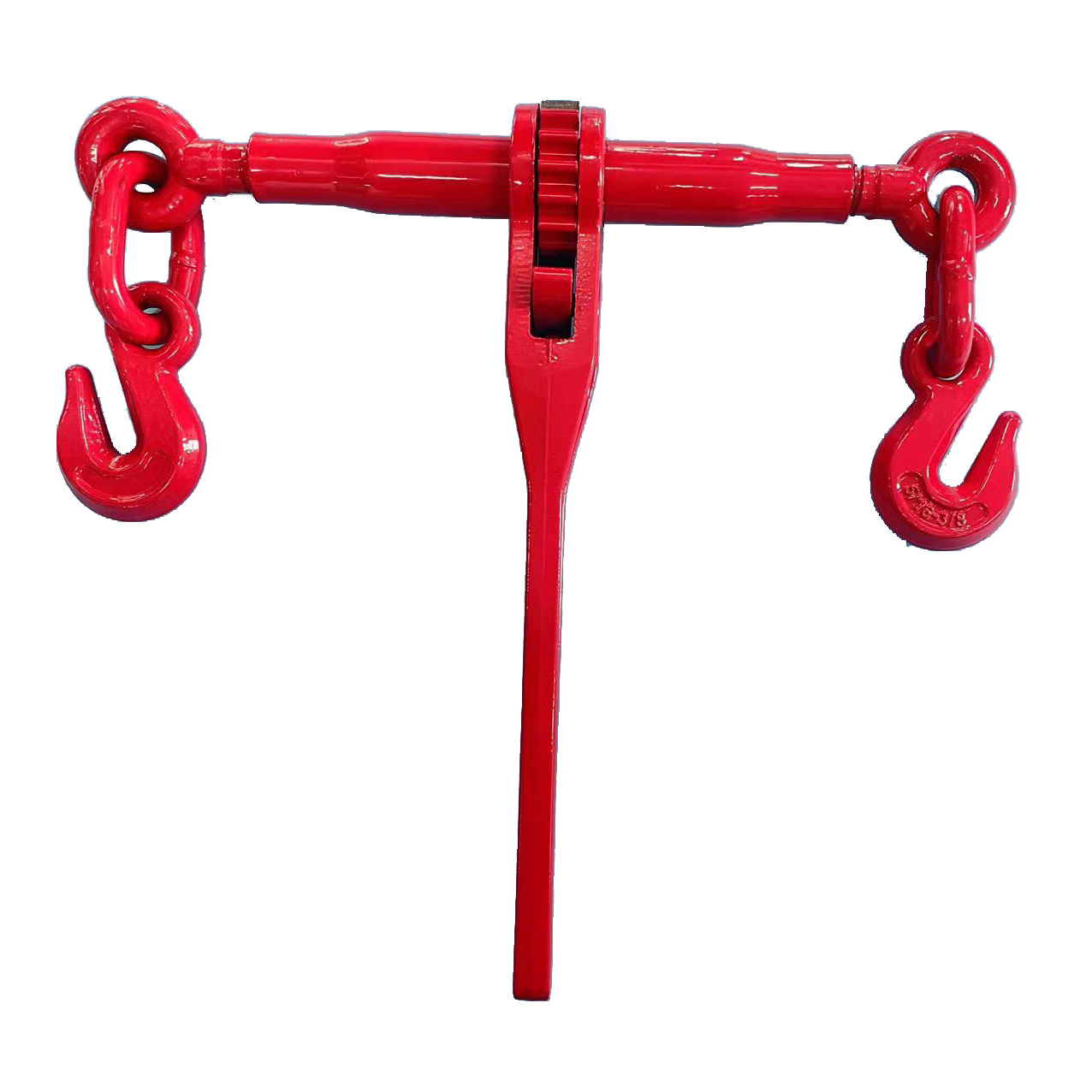

Manufactured by a professional industrial rigging hardware producer with over 20 years of specialized production experience, this product delivers reliable, high-tensile load control for professional transport operators, fleet management companies, cargo securement equipment distributors, and heavy haulage contractors. Available in European standard, American-style, hookless, and lever-type configurations, our cargo truck lashing ratchet binder meets global transport safety standards, ensuring compliant and secure load hold for even the most demanding heavy cargo transport operations.
Engineered for maximum load security, our heavy-duty ratchet load binder delivers industry-leading lashing capacity and breaking strength, with every unit rigorously tested to meet or exceed global load securement standards. The precision ratchet mechanism provides consistent, incremental tensioning, eliminating slack in cargo lashing chains and preventing load shift during transit – a critical safety benefit for commercial trucking and heavy haulage operations. Each model features a 4:1 safety factor between working load limit (WLL) and minimum breaking load, ensuring uncompromising reliability for high-value cargo transport.
Our ratchet-type tensioning device is built with operator efficiency in mind, featuring an optimized handle length and leverage ratio that reduces physical effort required for tensioning, while enabling single-operator use in fast-paced loading environments. The smooth ratchet mechanism allows for quick take-up and release, cutting down load securement time and improving fleet operational efficiency. Anti-slip handle grips and corrosion-resistant components ensure consistent performance even in harsh weather and heavy-use industrial conditions.
We offer a full range of cargo lashing ratchet binders aligned with European and American transport safety standards, with full load certification and compliance documentation provided for every commercial order. Our product line includes European ratchet type, American-style, hookless, and lever-type tensioning devices, compatible with 6mm to 16mm chain sizes (metric) and 1/4 in to 5/8 in chain sizes (imperial), making it adaptable to nearly all commercial truck lashing and heavy load securement applications.
European ratchet type tensioning device
Chain Size (mm) | Lashing Capacity （kn） | Breaking Load（kn） | Weight (lbs) | Handle Length (in) | Barrel Length (in) | Take Up（in） | Dimensions(in) | |||||||
A | B | C | E | E1 | F | F1 | G | |||||||
6 | 20 | 40 | 3.52 | 7.16 | 6.30 | 4.65 | 8.27 | 0.89 | 1.77 | 17.40 | 22.04 | 19.20 | 23.84 | 0.31 |
8 | 40 | 80 | 10.50 | 13.92 | 9.92 | 8.00 | 13.98 | 1.30 | 2.60 | 23.78 | 31.78 | 26.14 | 34.14 | 0.37 |
10 | 63 | 126 | 12.20 | 13.92 | 9.92 | 8.00 | 13.98 | 1.30 | 2.60 | 23.82 | 31.82 | 26.93 | 34.93 | 0.45 |
13 | 100 | 200 | 14.38 | 13.92 | 9.92 | 8.00 | 13.98 | 1.30 | 2.60 | 25.90 | 33.90 | 29.57 | 34.57 | 0.57 |
16 | 160 | 320 | 19.00 | 13.92 | 11.00 | 10.00 | 14.96 | 1.30 | 2.60 | 26.50 | 34.80 | 31.60 | 39.90 | 0.69 |
American-style ratchet-type tensioning device
Min-Max Chain Size (in) | WLL (lbs) | Proof Load(lbs) | Breaking Load(lbs) | Weight (lbs) | Handle Length(in) | Dimensions(in) | ||||||
A | B | C | E | E1 | F | G | ||||||
1/4-5/16 | 2200 | 4400 | 7800 | 3.52 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 12.11 | 14.00 | 14.00 | 1.38 | 2.75 | 22.94 | 30.94 | 25.13 | 0.50 |
3/8-1/2 | 9200 | 18400 | 33000 | 14.70 | 14.00 | 14.00 | 1.38 | 2.75 | 22.94 | 33.25 | 27.63 | 0.63 |
1/2-5/8 | 13000 | 26000 | 46000 | 14.55 | 14.00 | 14.00 | 1.38 | 2.75 | 22.94 | 24.38 | 29.44 | 0.72 |
Hookless ratchet-type tensioning device
Min-Max Chain Size (in) | WLL (lbs) | Proof Load (lbs) | Breaking Load (lbs) | Weight (lbs) | Handle Lenght (in) | Dimensions(in) | |||||
A | B | C | E | E1 | F | ||||||
5/16-3/8 | 5400 | 10800 | 19000 | 12.11 | 14.00 | 14.00 | 1.38 | 2.75 | 13.70 | 21.70 | 0.79 |
3/8-1/2 | 9200 | 18400 | 33000 | 14.70 | 14.00 | 14.00 | 1.38 | 2.75 | 13.70 | 21.70 | 1.02 |
1/2-5/8 | 13000 | 26000 | 46000 | 14.55 | 14.00 | 14.00 | 1.38 | 2.75 | 14.00 | 22.00 | 1.00 |
Lever-type tensioning device
Min-Max Chain Size（in） | WLL (lbs) | Proof Load (lbs) | Breakin g Load (lbs) | Weigh t (lbs) | Handle Lenght (in) | Take Up (in) | Dimensions(in) | |||||
A | B | C | E | F | G | |||||||
1/4-5/16 | 2600 | 4400 | 9200 | 3.52 | 11.42 | 11.42 | 18.5 | 17.3 | 14.17 | 8.27 | 8.07 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 7.02 | 16.00 | 4.50 | 24.13 | 22.13 | 17.88 | 10.38 | 10.38 | 0.50 |
3/8-1/2 | 9200 | 18400 | 33000 | 12.47 | 18.69 | 4.50 | 28.75 | 25.75 | 21.25 | 12.31 | 12.38 | 0.63 |
1/2-5/8 | 1300 0 | 26000 | 46000 | 19.68 | 21.00 | 4.75 | 31.25 | 29.75 | 25.00 | 14.63 | 13.75 | 0.72 |
Our cargo truck ratchet load binder is the industry standard for commercial long-haul fleets, general freight transport companies, and dedicated logistics operators, designed for securement of general cargo, palletized goods, and bulk materials on flatbed and dry van trucks.
Heavy haul contractors and specialized transport companies rely on our high-tensile ratchet binders for oversized equipment, construction machinery, and heavy industrial load securement, where maximum load stability and compliance with heavy transport regulations are mandatory.
This product is widely used by construction material suppliers, equipment rental companies, and industrial contractors for transporting building materials, steel beams, and heavy machinery to job sites, ensuring secure load hold even on uneven terrain and long-distance hauls.
All our commercial-grade ratchet load binders feature a minimum 4:1 safety factor between the working load limit (WLL) and minimum breaking load, with full batch testing certification provided for every commercial order to ensure compliance with global transport safety standards.
Our cargo lashing ratchet tensioning devices are compatible with metric chain sizes from 6mm to 16mm, and imperial chain sizes from 1/4 in to 5/8 in, with model-specific compatibility clearly marked for every configuration.
Standard bulk orders for commercial transport clients have a lead time of 10-15 working days, with expedited production and custom branding options available for large fleet and distribution partner orders upon request.

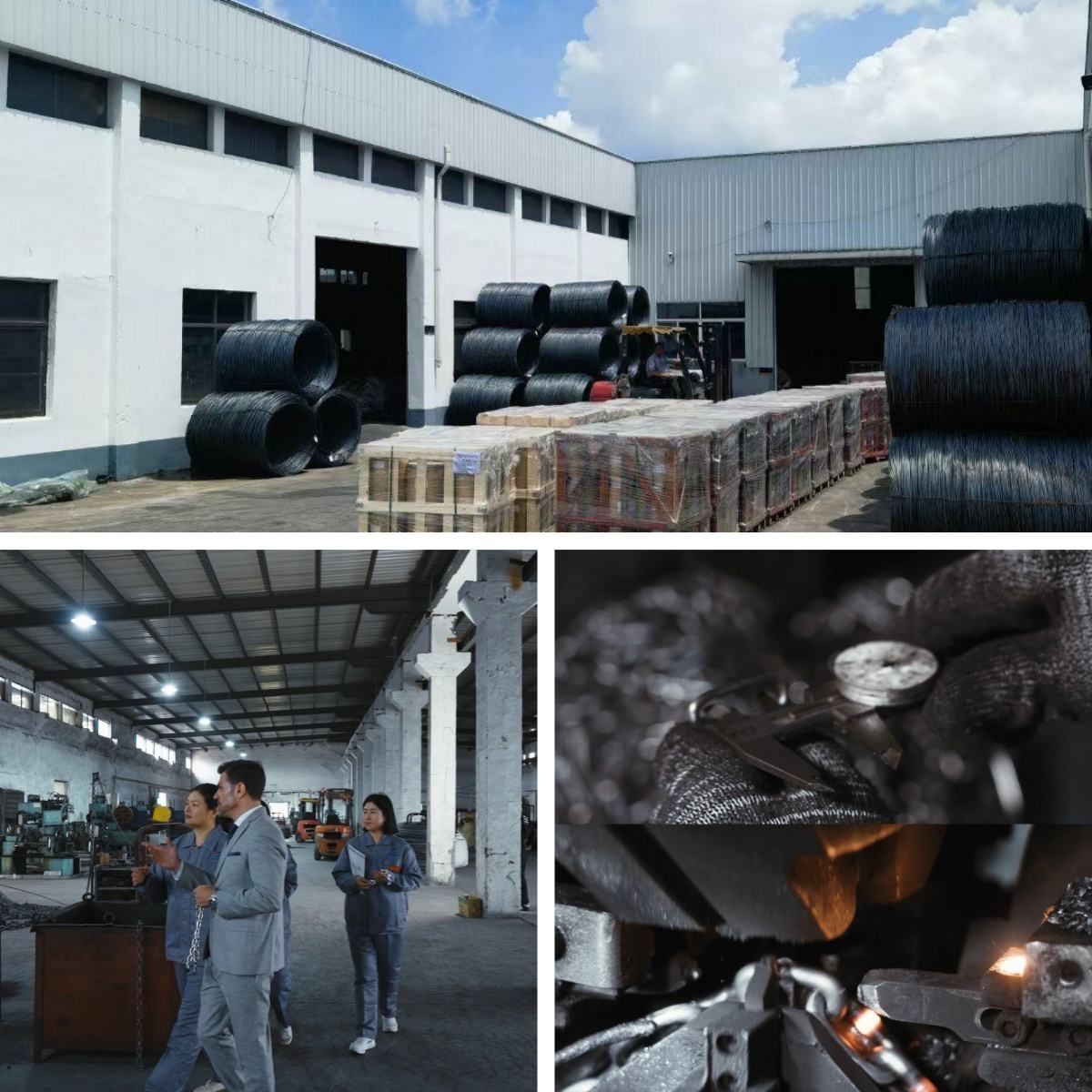

As a professional industrial rigging hardware manufacturer with over 20 years of experience serving commercial transport and logistics clients, we deliver tailored ratchet load binder solutions for cargo truck lashing, heavy haulage, and industrial load securement projects. We offer free project-specific quotes, product sample testing, and full compliance documentation to help you meet global transport safety standards and operational efficiency goals. Contact our commercial sales team today to discuss your fleet or project needs and receive your no-obligation custom quote.
